ROS 2 API

This page reflects the topics and services that a MOLA system will expose when running a SLAM or LiDAR-odometry module. At present, this applies to:

• Any MOLA system including the BridgeROS2 module: This module acts as a wrapper of mola-kernel virtual interfaces implemented in other MOLA modules and the ROS 2 system.

• 3D LiDAR odometry

---

---

1. Nodes and launch files

1.1. ROS 2 node for Lidar Odometry (LO)

Note

It is recommended to start with the tutorial on how to build a map.

This launch file (view sources) runs MOLA-LO live on point clouds received from a ROS 2 topic, demonstrating a few features:

• Launching and visualizing LO in both, mola_viz and RViz2 (or use FoxGlove if preferred).

• How MOLA mola_lidar_odometry publishes the local map, the estimated trajectory, and /tf for the estimated odometry.

Basic usage

# Minimal use case (requires correct LiDAR sensor /tf):
ros2 launch mola_lidar_odometry ros2-lidar-odometry.launch.py \
   lidar_topic_name:=ouster/points

# Usage without sensor /tf:
ros2 launch mola_lidar_odometry ros2-lidar-odometry.launch.py \
   lidar_topic_name:=ouster/points \
   ignore_lidar_pose_from_tf:=True

Robot with NS

If your robot uses a ROS 2 namespace ROBOT_NS for all its sensor and tf topics, use:

# Minimal use case:
ros2 launch mola_lidar_odometry ros2-lidar-odometry.launch.py \
   lidar_topic_name:=ouster/points \
   use_namespace:=True \
   namespace:=ROBOT_NS

All launch arguments

$ ros2 launch mola_lidar_odometry ros2-lidar-odometry.launch.py --show-args
Arguments (pass arguments as '<name>:=<value>'):

   'namespace':
      Top-level namespace
      (default: '')

   'use_namespace':
      Whether to apply a namespace to the navigation stack
      (default: 'false')

   'lidar_topic_name':
      Topic name to listen for PointCloud2 input from the LiDAR (for example '/ouster/points')

   'ignore_lidar_pose_from_tf':
      If true, the LiDAR pose will be assumed to be at the origin (base_link). Set to false (default) if you want to read the actual sensor pose from /tf
      (default: 'false')

   'gnss_topic_name':
      Topic name to listen for NavSatFix input from a GNSS (for example '/gps')
      (default: 'gps')

   'imu_topic_name':
      Topic name to listen for Imu input (for example '/imu')
      (default: 'imu')

   'use_mola_gui':
      Whether to open MolaViz GUI interface for watching live mapping and control UI
      (default: 'True')

   'publish_localization_following_rep105':
      Whether to publish localization TFs in between map->odom (true) or directly map->base_link (false)
      (default: 'True')

   'use_rviz':
      Whether to launch RViz2 with default lidar-odometry.rviz configuration
      (default: 'True')

Configure sensor inputs for ROS 2 node and rosbag2 input

The following environment variables can be set to change the behavior of how BridgeROS2 handles input ROS 2 messages on sensor inputs. Please, refer to the actual mola-cli launch files where these variables are defined:

• mola-cli-launchs/lidar_odometry_from_rosbag2.yaml

• mola-cli-launchs/lidar_odometry_ros2.yaml

Environment variables:

• MOLA_TF_BASE_FOOTPRINT (Default: "base_link"): The robot reference frame id in /tf. Used to get sensor poses with respect to the vehicle.

• MOLA_LIDAR_TOPIC (Default: '/ouster/points'): The sensor_msgs/PointCloud2 topic with raw LiDAR data (mandatory).

• MOLA_USE_FIXED_LIDAR_POSE (Default: false): If false, sensor pose will be retrieved from /tf. You can also set it to true and then the sensor pose will be given by these env. variables:

  • LIDAR_POSE_X, LIDAR_POSE_Y, LIDAR_POSE_Z (in meters).

  • LIDAR_POSE_YAW, LIDAR_POSE_PITCH, LIDAR_POSE_ROLL (in degrees).

• MOLA_GNSS_TOPIC (Default: '/gps'): The sensor_msgs/NavSatFix topic with GNSS data (optional).

• MOLA_USE_FIXED_GNSS_POSE (Default: true): If false, sensor pose will be retrieved from /tf. You can also set it to true and then the sensor pose will be given by these env. variables:

  • GNSS_POSE_X, GNSS_POSE_Y, GNSS_POSE_Z (in meters).

  • GNSS_POSE_YAW, GNSS_POSE_PITCH, GNSS_POSE_ROLL (in degrees).

• MOLA_IMU_TOPIC (Default: '/imu'): The sensor_msgs/Imu topic with IMU data (optional).

• MOLA_USE_FIXED_IMU_POSE (Default: true): If false, sensor pose will be retrieved from /tf. You can also set it to true and then the sensor pose will be given by these env. variables:

  • IMU_POSE_X, IMU_POSE_Y, IMU_POSE_Z (in meters).

  • IMU_POSE_YAW, IMU_POSE_PITCH, IMU_POSE_ROLL (in degrees).

More LO parameters

The lidar3d-default.yaml pipeline file defines plenty of additional parameters and options that you can explore. See also the docs for the ROS 2 API and this tutorial on how to save and load a map using ROS 2 MOLA-LO nodes.

---

2. Map loading / saving

During a live SLAM run, BridgeROS2 will look for modules implementing MapServer and will expose these ROS 2 services to load or save the current map:

• /map_load: See ROS docs for mola_msgs/MapLoad

• /map_save: See ROS docs for mola_msgs/MapSave

Example ROS 2 cli service calls

To save the current map:

ros2 service call /map_save mola_msgs/srv/MapSave "map_path: '/tmp/my_map_file_prefix'"

To load a map from disk:

ros2 service call /map_load mola_msgs/srv/MapLoad "map_path: '/tmp/my_map_file_prefix'"

Note that filename extension should not be given, since each service implementation may add a different extension, or even save several files that should all, together, be later on loaded as one to load the map again.

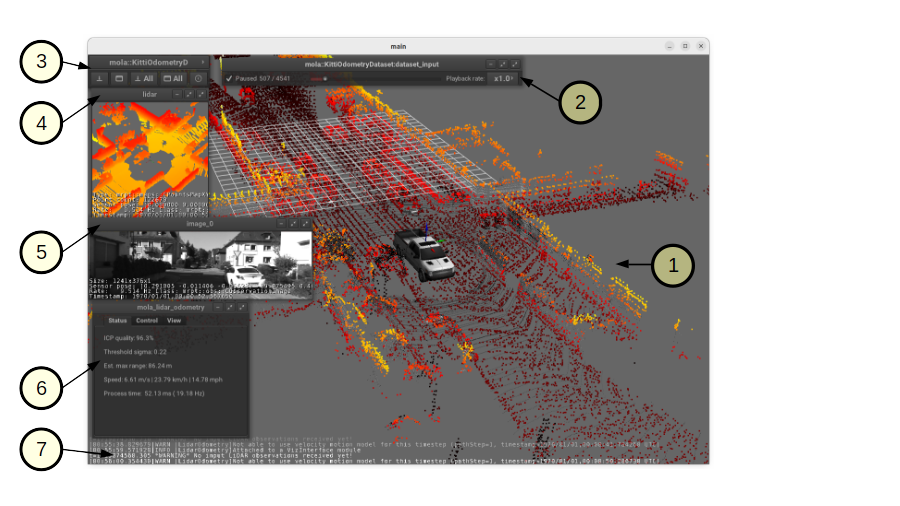

Alternatively, you can enable saving the map when mapping is ended by checking the corresponding checkbox in the MOLA-LO GUI (block “6” below):

---

3. Re-localization

Write me!

---

4. Published /tf frames

These frames of reference exist when using MOLA geo-referenced maps:

Note

For non geo-referenced maps, all frames remain the same but utm and enu will not exist.

These are the existing frames:

• base_link: The robot reference frame. For ground vehicles, normally placed at the center of the rear axle.

• odom: The arbitrary origin for odometry measurements.

• map: The origin of the reference metric map used for localization.

• enu: For geo-referenced maps, the North (y axis), East (x axis), Up (z axis) frame for which we have reference geodetic coordinates (latitude and longitude). Different maps built in the same zone will surely have different enu frames, since it is defined by collected GNSS measurements.

• utm: The origin of the UTM zone in which enu falls. Unlike enu, it is independent of the trajectory followed while building the map.

And this is who is responsible of publishing each transformation:

• odom → base_link: Odometry module. High-frequency, accurate in the short term, but drifts in the long term.

• map → odom: Localization module, which corrects the odometry drift.

• enu → {map, utm}: Published by mrpt_map_server (github), if fed with a geo-referenced metric map (.mm) file.

---

5. Published topics

Write me!

---

6. Map publishing

There are two ways of publishing maps to ROS:

• Using mrpt_map_server (github): the recommended way for static, previously-built maps. In this case, one ROS topic will be published for each map layer, as described in the package documentation. See also this tutorial.

• During a live map building process (e.g. MOLA-LO).

In this latter case, BridgeROS2 will look for modules implementing MapSourceBase and will publish one topic named <METHOD>/<LAYER_NAME> for each map layer. The metric map layer C++ class will determine the ROS topic type to use.

Note

Using the default MOLA LiDAR odometry pipeline, only one map topic will be generated during mapping:

• Name: /lidar_odometry/localmap_points

• Type: sensor_msgs/PointCloud2

---

7. Runtime dynamic reconfiguration

MOLA modules may expose a subset of their parameters through an interface that allows runtime reconfiguration via ROS 2 service requests:

7.1. Runtime parameters for mola_lidar_odometry

List all existing parameters:

ros2 service call /mola_runtime_param_get mola_msgs/srv/MolaRuntimeParamGet

Example output

requester: making request: mola_msgs.srv.MolaRuntimeParamGet_Request()

response:
mola_msgs.srv.MolaRuntimeParamGet_Response(parameters='mola::LidarOdometry:lidar_odom:\n  active: true\n  generate_simplemap: false\n  mapping_enabled: true\n')

Returned parameters as YAML:

mola::LidarOdometry:lidar_odom:
  active: true
  generate_simplemap: false
  mapping_enabled: true

Documented parameters:

• active: Whether MOLA-LO should process incoming sensor data (active: true) or ignore them (active: false).

Copy & paste commands for active

# active: true
ros2 service call /mola_runtime_param_set mola_msgs/srv/MolaRuntimeParamSet \
   "{parameters: \"mola::LidarOdometry:lidar_odom:\n  active: true\n\"}"

# active: false
ros2 service call /mola_runtime_param_set mola_msgs/srv/MolaRuntimeParamSet \
   "{parameters: \"mola::LidarOdometry:lidar_odom:\n  active: false\n\"}"

• mapping_enabled: Whether MOLA-LO should update the localmap (true) or just use it in localization-only mode (false).

Copy & paste commands for mapping_enabled

# mapping_enabled: true
ros2 service call /mola_runtime_param_set mola_msgs/srv/MolaRuntimeParamSet \
   "{parameters: \"mola::LidarOdometry:lidar_odom:\n  mapping_enabled: true\n\"}"

# mapping_enabled: false
ros2 service call /mola_runtime_param_set mola_msgs/srv/MolaRuntimeParamSet \
   "{parameters: \"mola::LidarOdometry:lidar_odom:\n  mapping_enabled: false\n\"}"

• generate_simplemap: Whether MOLA-LO should build the keyframes-based map (apart of the local metric map), so you end up with a *.simplemap file.

Copy & paste commands for generate_simplemap

# generate_simplemap: true
ros2 service call /mola_runtime_param_set mola_msgs/srv/MolaRuntimeParamSet \
   "{parameters: \"mola::LidarOdometry:lidar_odom:\n  generate_simplemap: true\n\"}"

# generate_simplemap: false
ros2 service call /mola_runtime_param_set mola_msgs/srv/MolaRuntimeParamSet \
   "{parameters: \"mola::LidarOdometry:lidar_odom:\n  generate_simplemap: false\n\"}"
